Name: 2024 Skwad 1
SKU: 530597

2024 Skwad 1

$ 63.73

$ 82.85

Save: $

Color:

CherryCola
PearlWhite

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

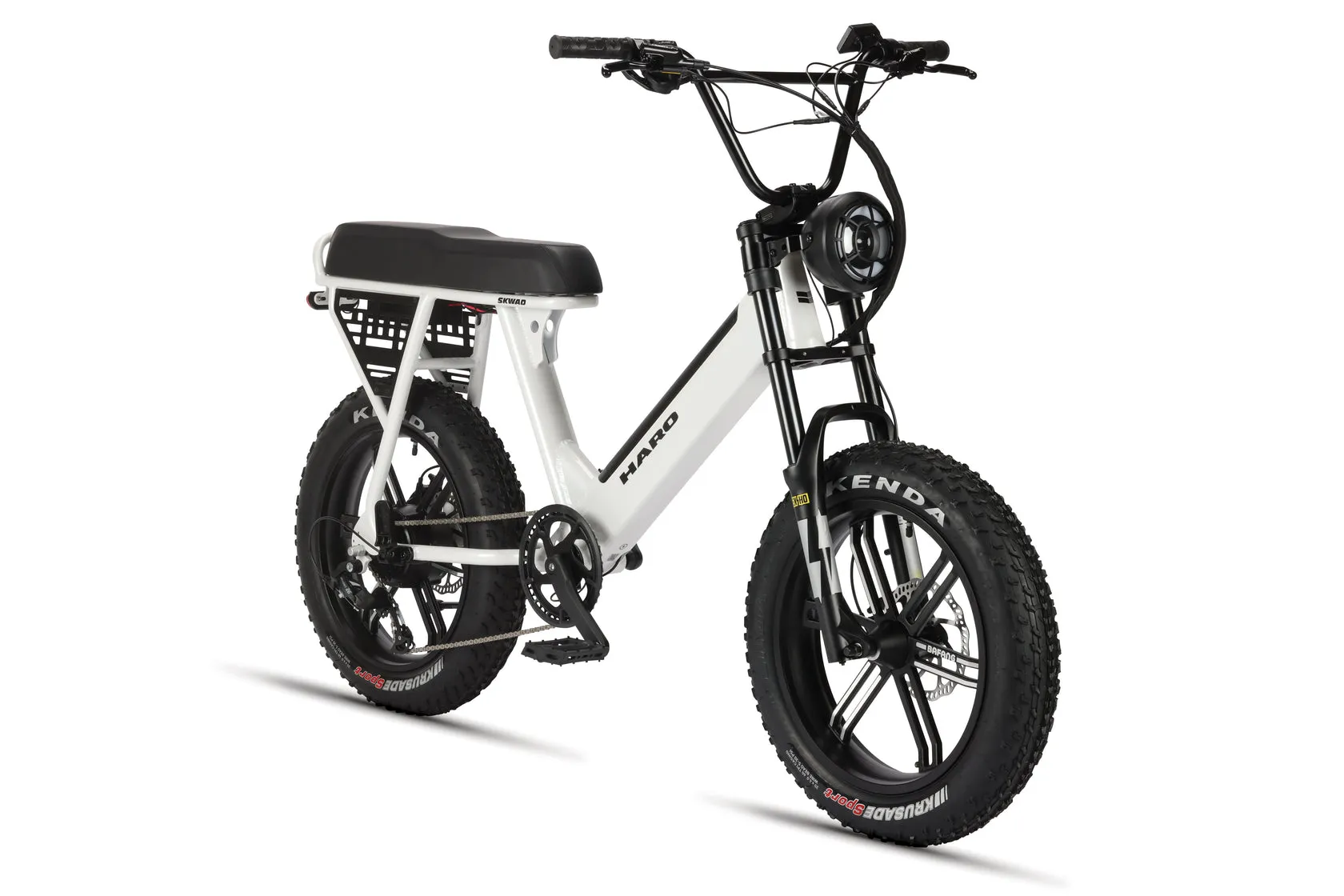

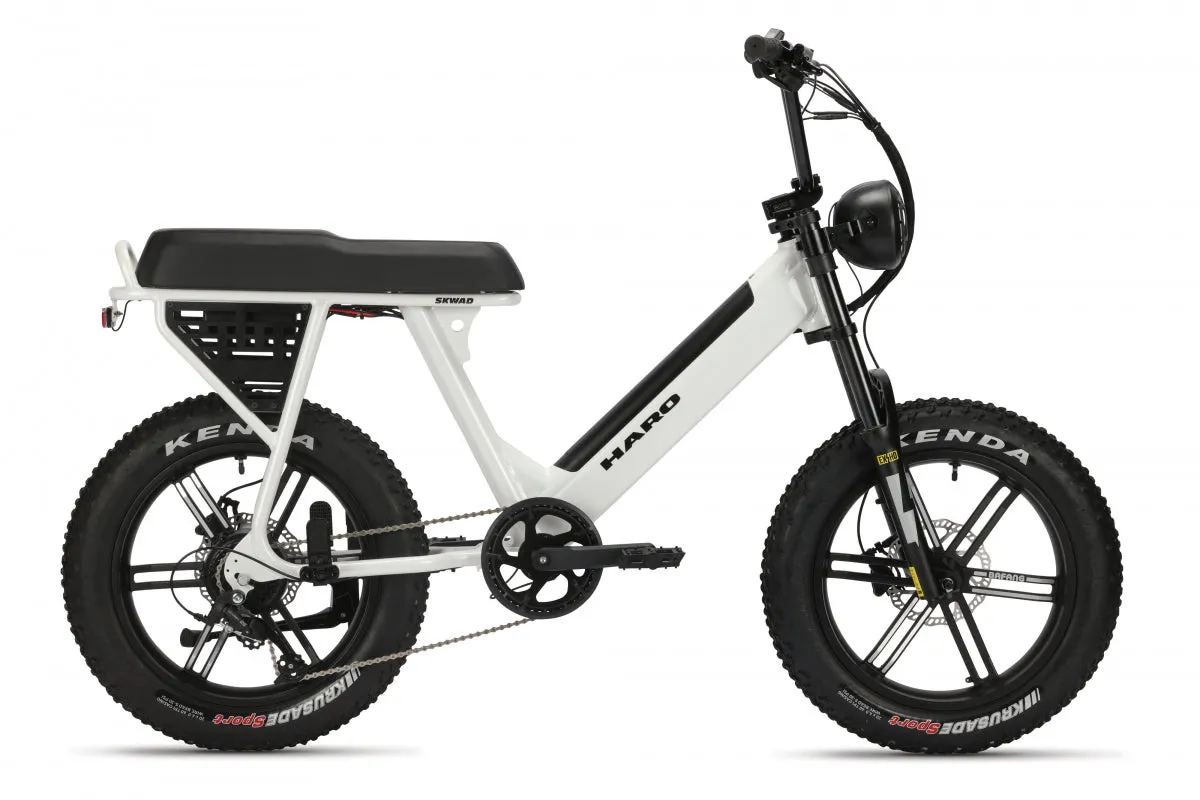

Skwad up. The Skwad 1 is our fan-favorite Skwad E-bike re-upped with a few tweaks to keep it "current", if you will. Electric bike puns aside, the Skwad 1 is the powerhouse of our E-lineup with a 750W motor, aluminum frame, 100mm travel suspension fork and a big, comfy seat. On the bottom side, you get 6-spoke alloy wheels with 20 X 4" tires for the perfect combination of traction, cushion and shock-absorbing qualities. Five pedal assist levels, with a thumb-throttle and 7-speeds on the drive train get you where you want to go, in style.

FEATURES

6061 T6 Aluminium frame. Tapered head tube, internal downtube battery and built-in grid mounting plate
Bafang 750W drive unit
48v, 13.2AH internal downtube battery, UL certified
40 mile range
Dual-piston hydraulic disc brakes with 180mm rotors, front & rear
MX Style front headlight and rear brake alert light
Left-side thumb throttle, five levels of pedal assist
Alloy 6-spoke mag wheels with 20 x 4" Kenda tires
Triple crown suspension fork, 100mm travel
Ebike classification: Class 2, 750W/20MPH

Frame	6061 T6 Aluminium; tapered head tube and internal battery. Built-in grid mounting plate
Fork	100mm travel I Triple crown with alloy steerer tube I Aluminum 32mm stanchions
Crankset	Forged aluminum \| 170MM
Pedals	9/16" Chromoly axle, Alloy Body
Chain	KMC Z7 \| 7SPD
Bottom Bracket	Square Taper \| 73mm \| 148mm Spindle I Cadence Sensor
Rear Derailleur	Microshift RD-M26L
Derailleur Shifter(s)	Microshift TS39-7
Freewheel \| Cassette	Shimano mf-TZ500-7SPD 14-28T
Drive Unit	Bafang 750W. Class 2, 750W/20MPH, five levels of pedal assist
Battery	Bafang 48V 13.2 AH 576WH, 13S4P, EVE 2900 cells, UL certified
Tires	Kenda Krusade 20"X4"
Wheels \| Rims	Bafang Alloy 6 Spoke Mag Wheel
Brakes	Rush Dual Piston \| Open System \| 180mm Rotors \| STD Mount
Brake Lever(s)	Radius 2.5 Finger \| Sensor Control Cut Off \| Reach Adjustment
Grips \| Tape	Dual locking 135mm Velo Grips
Handle Bar	Haro Baseline 2-piece 9.5"
Stem	Haro Baseline 48mm reach
Headset	1-1/8" - 1-1/5" tapered internal headset
Saddle	Haro Cafe
Seat Post
Seat Post Clamp
Extras	Rear brake Light; Front MX style headlight; left thumb throttle
Sprocket	42T Alloy Chainring Alloy Guard
